Les broyeurs à jet d’air en spirale sont fréquemment employés dans l’industrie pharmaceutique et pour la fabrication de produits chimiques fins.

Le broyeur Aeroplex AS ne contient pas de composants rotatifs, ce qui veut dire qu’il ne possède pas de paliers ni de joints d’arbre, et aucun lubrifiant n’est utilisé non plus. Par conséquent, il ne peut pas y avoir de contamination du produit par de telles sources.

La géométrie simple des composants de broyage permet un nettoyage facile et, si nécessaire, la stérilisation du broyeur entier.

  • Broyeur à jet d’air en spirale pour le broyage ultra-fin de matériaux mous (jusqu’à une dureté Mohs de 3) présentant un comportement de rupture fragile dans la plage de finesse 10 à 150 µm
  • Comprend une chambre de broyage cylindrique plate sans composants rotatifs
  • Partie supérieure amovible ou rabattable

The grinding air is injected tangentially via Laval nozzles in the nozzle ring into the machine. This causes a spiral jet of air to form in the grinding zone, from which the mill derives its name. A high pressure forms in the mill as a result of the spiral flow of air that can rise to 1 bar overpressure in operation without product. The integrated injector is charged with compressed air which ensures that the product is conveyed into the machine against the overpressure present in the machine. This, however, is associated with a considerable compressed air consumption, which can be as much as 30% of the total grinding air requirement.

The feed product circulates close to the nozzle ring and is thus intercepted repeatedly by the air jets exiting the nozzles. Comminution is the result of interparticle collision caused by the particles flowing at different speeds in the nozzle jet. Comminuted material is conveyed along with the air to the discharge, the spiral flow subjects the particles to a classification: only fine particles are discharged, coarse particles remain in the mill.

Alpine's spiral jet mills are characterised by a special geometry of the mill housing in the area of the discharge, which contributes towards a finer classification effect and a sharp top cut.

The product also has an effect on the air flow within the machine: the more product there is in the machine, the more the spiral flow is braked and the lower is the centrifugal force and the coarser the end product. The relationship of the product to the classifying air flow rate is therefore the most significant parameter for setting the fineness of the spiral jet mill. In principle, different nozzle angles can also be used to achieve the required fineness values, whereby the complete nozzle ring must be exchanged in this case.

  • Vertical mill housing for easy handling
  • Special grinding zone geometry for products free of oversized particles
  • Grinding zone without rotating components
  • Material feed via injector
  • Exchangeable nozzle ring
  • Stainless steel design, product-contact surfaces with a high quality of finish (order-specific)
  • Easy to dismantle and clean
  • CIP/SIP-capable

Ultrafine size reduction of dry materials with a crystalline structure up to a Mohs' hardness of 3. Alpine jet mills are used predominantly for high-grade pharmaceutical products, e.g. antibiotics or fine-grade chemicals, especially when high demands are made of the purity and fineness of the end products. The most common requirements at a max. feed size of approx. 1.5 mm are end-product fineness values with a d97 ranging between approx. 5 and 30 µm

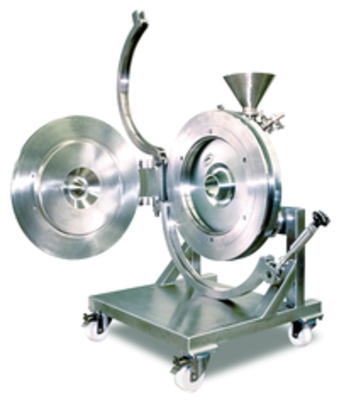

Spiral jet mill 200 AS Baseline

Your access to the fine world

The spiral jet mill 200 AS Baseline combines a well-known and proven technology with high economic efficiency. The focus is on improved usability and clever design solutions. All parts in contact with the products are fully cGMP compliant.

Key features:

  • State-of-the-art design results in superior usability
  • cGMP design allows good cleanability with all relevant parts in AISI 316 L and FDA approved
  • Plug-and-play design for immediate use after delivery
  • Improved ergonomics
  • An innovative dosing system to feed the material directly from the raw material container
  • Exchangeable inserts reduce maintenance costs and allow processing difficult materials
  • All that in a very compact design and at an affordable price
