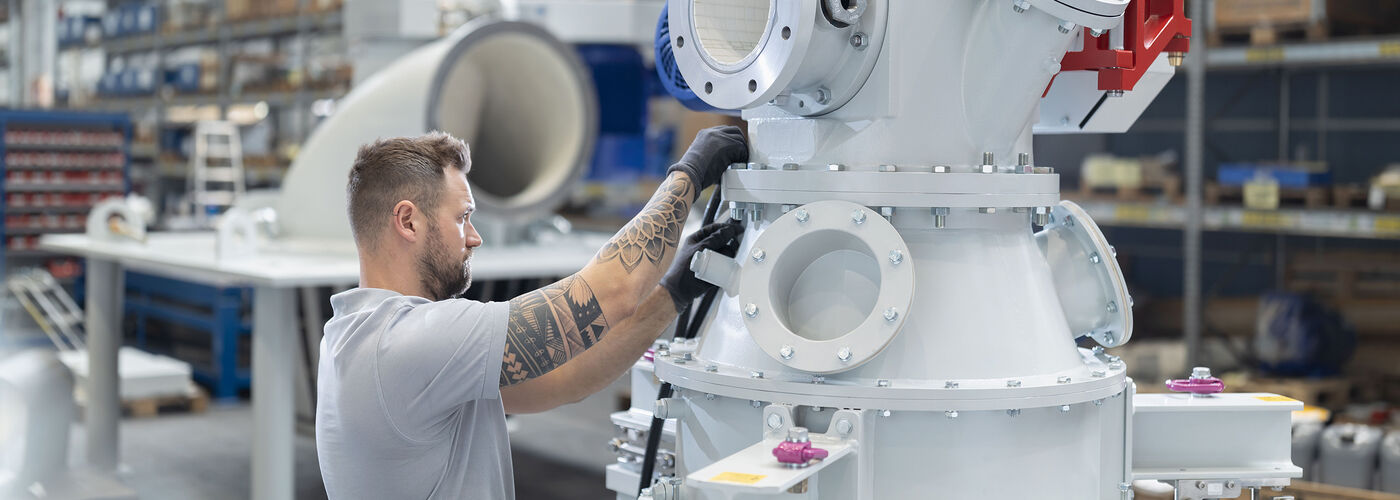

PULVIS

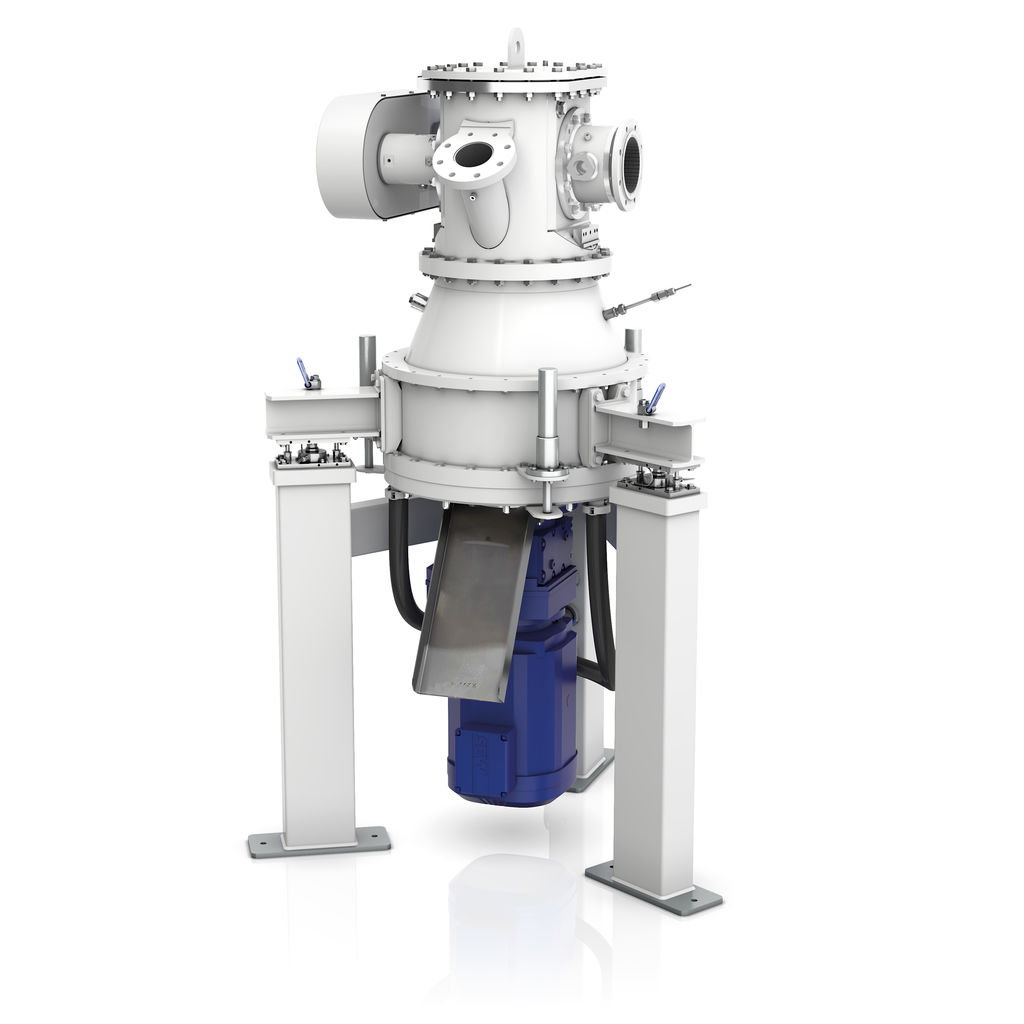

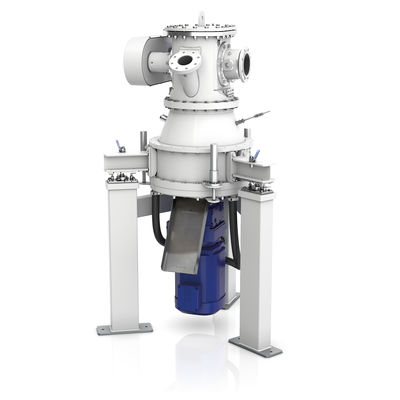

Le PULVIS est un broyeur à billes vertical, par voie sèche, qui intègre un sélecteur dynamique. Son point fort est le broyage ultra-fin et peu contaminant des matériaux durs.

Les processus de broyage de solides tels que les matériaux céramiques ou le verre sont très gourmands en énergie. Plus le grain cible est fin, plus le besoin en énergie est élevé. Le PULVIS a été développé pour réduire considérablement ce besoin.

  • Finesses jusqu’à d97 < 1 μm
  • Distribution granulométrique raide
  • Jusqu’à 80 % d’économie d’énergie

Principle of operation

The milling part is located at the bottom of the machine. Feed material is ground by agitated media that combine impact grinding and attrition.

The gasflow injected from the bottom side transports and cools the particles on their way through the grinding media.

Ground particles are conveyed by air, passing through the grinding chamber to the classifier.

The classifier separates the required fine product from coarse particles. The coarse particles return to the grinding zone for further grinding.

Features

  • Compact design
  • From Laboratory to production scale: with possibility to scale-up over complete range

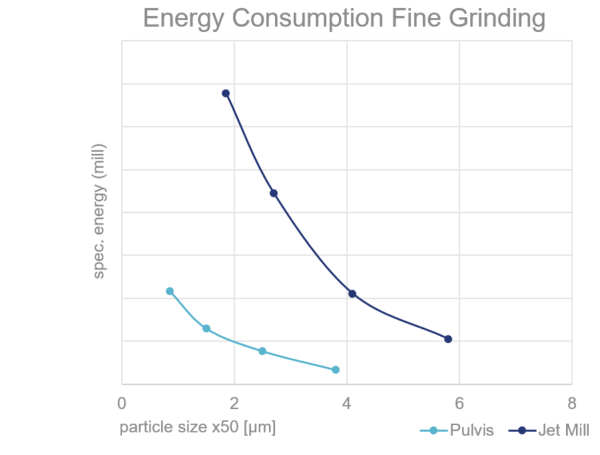

  • Energy efficient: With high grinding efficiency specific energy consumption is reduced by up to 80 %. Finer particle sizes are possible compared to jet milling.
  • Ultra fine particles: The compact unit reliably produces very fine products with particle sizes in the sub-micron range.
  • Easy assembly: disassembly and cleaning are achieved with this design. Ideal machine for frequent material changes.
  • Wear protection: Mill and classifier are protected by ceramic lining and parts.

Applications

The PULVIS is the right choice for the ultra-fine grinding of hard, temperature un-sensitive materials. In the grinding process also additives can be used. Typical application for the PULVIS are for example:

  • Aluminium oxide
  • Anorganic pigments
  • Battery materials
  • Ceramic materials
  • Ceramic pigments
  • Glass, glass frits
  • Hydrogen adsorbent alloy
  • Industrial materials
  • Metal oxide
Download
Brochure PULVIS
Download
Download
Brochure Dry Ultrafine Grinding of Minerals
Download
