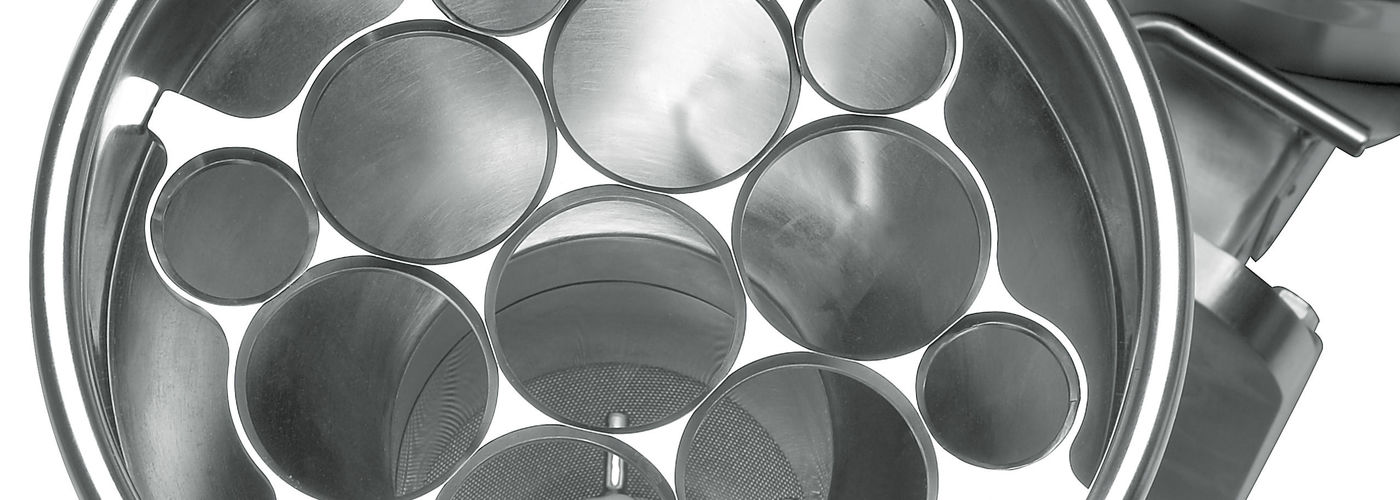

Hosokawa Alpine Siebmühle Bexmill Draufsicht

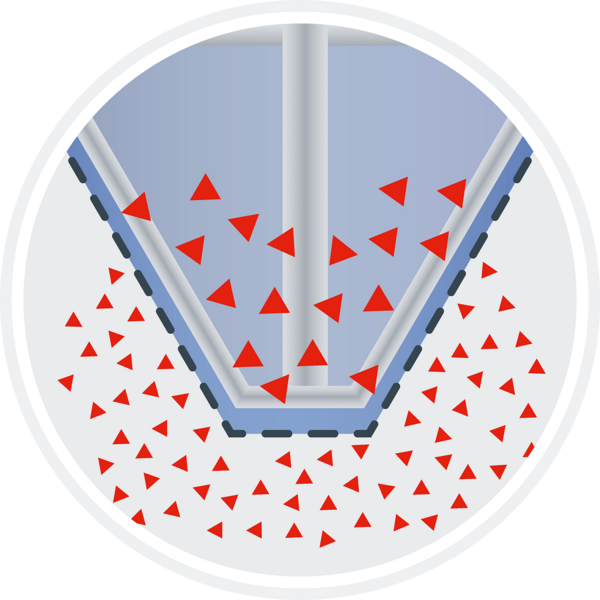

Hosokawa Alpine Siebmühle Bexmill Illustration

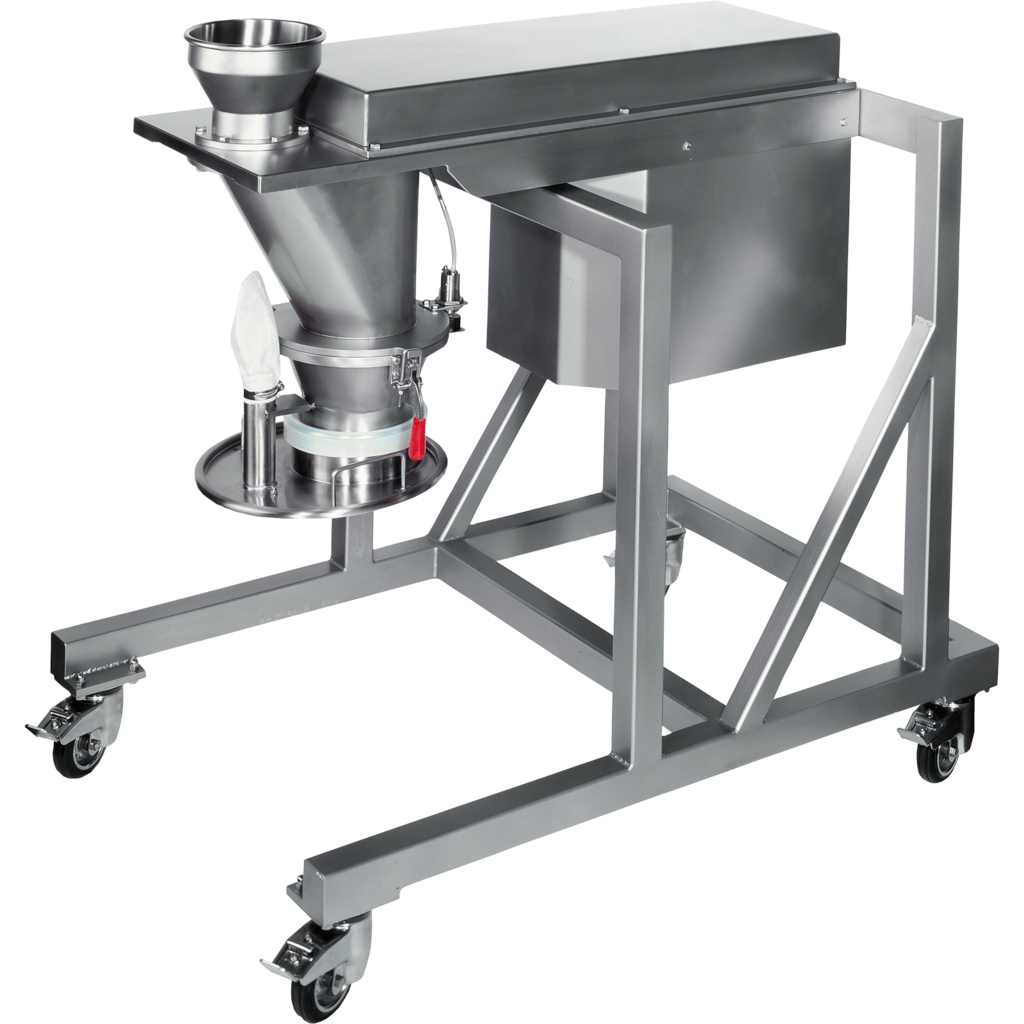

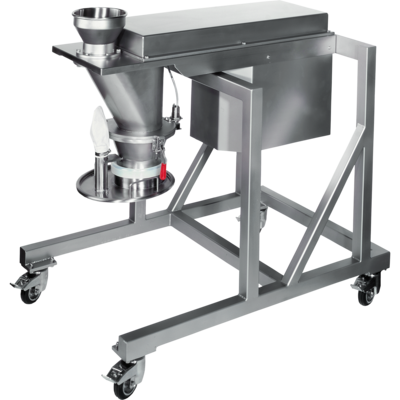

Bexmill ABM

Vous posez les plus hautes exigences aux processus de broyage de vos matériaux en vrac ? Le Bexmill ABM offre la solution idéale pour les industries pharmaceutique, chimique et alimentaire – du laboratoire à la production à grande échelle de 10 t/h – en différentes tailles pour une gamme étendue d’applications.

Options polyvalentes pour la conception, l’équipement et les accessoires
Broie les matériaux tendres à moyennement durs en une seule étape
Changement rapide d’outil pour le rotor et le tamis
Temps de nettoyage courts, manipulation facile

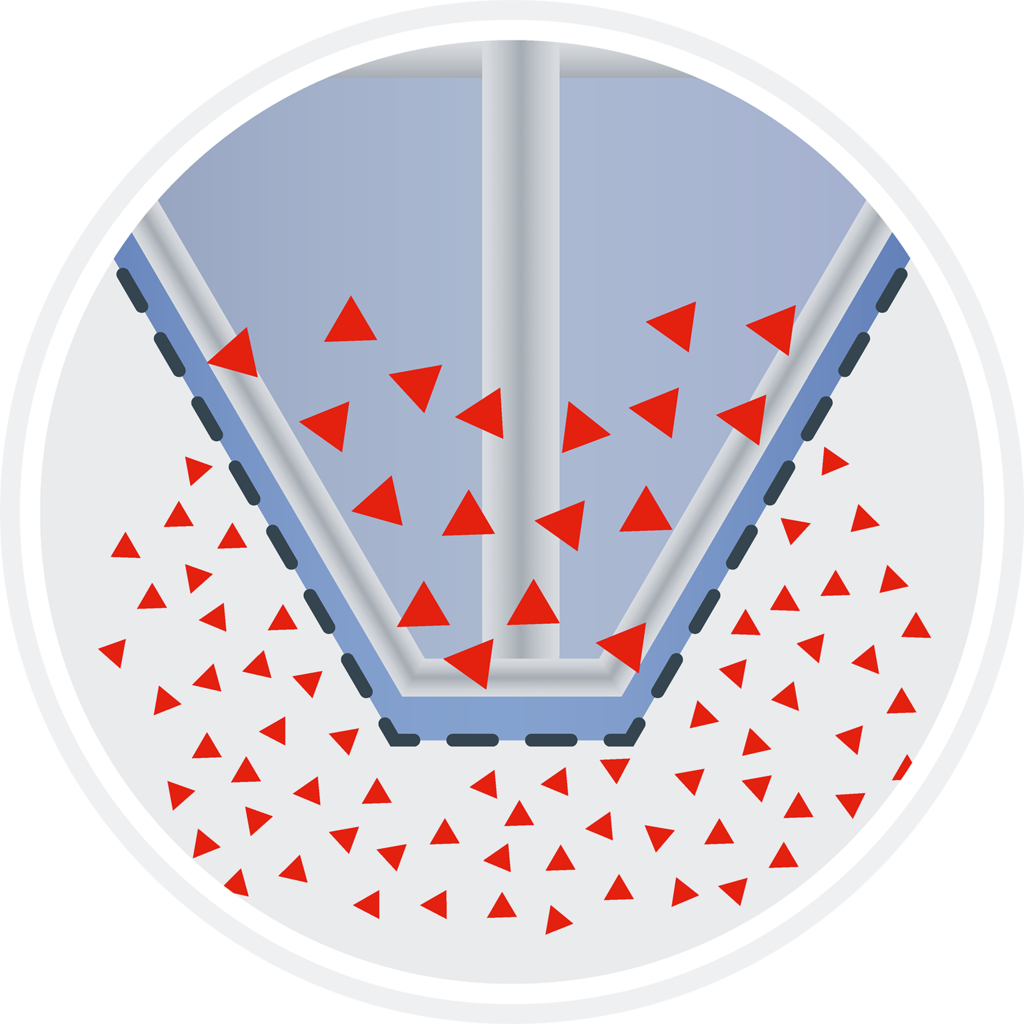

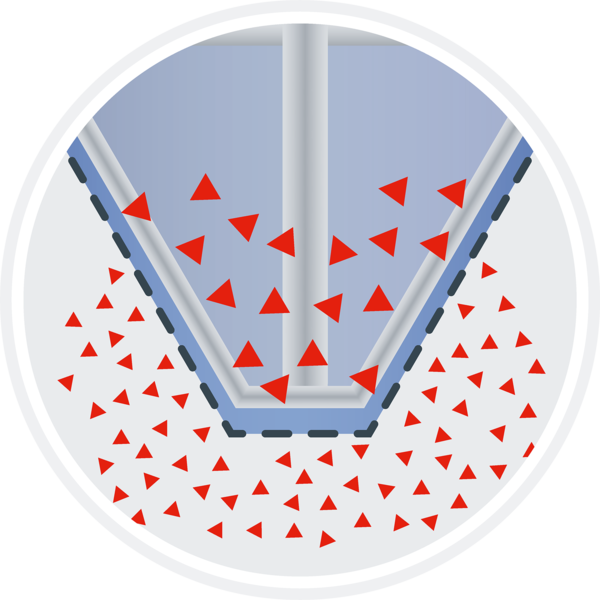

Principle of operation

Crushing with the Bexmill brings several advantages right from the start:

Bulk materials are homogenised, the flowability improved, the bulk density increased, agglomerates dispersed and rejects crushed gently
The conical shape of the grinding chamber guarantees high speeds, higher throughput rates and higher fineness values
Wide product and application range – from moist to dry feed material
The rotor can be adjusted without any need to open the grinding chamber, and this ensures an optimum crushing effect

Applications

Tailored to your application

Crushing of flakes, homogenisation of mixtures, disintegration of agglomerates, finishing of granulates
After mixer agglomeration, after fluid beds and kilns

Powdered milk

The deagglomeration of the powder downstream of the mixing and drying steps constitutes an essential element of the production of high-quality milk powder.

Salt & Sugar lumps

Hygroscopic products have a tendency to form lumps during their storage. Homogenisation ensures a smooth production process.

Salty snacks / Sweet pastries

Broken goods need no longer be disposed of but can rather be returned to the production process as rework material.

Technical specifications

Bexmill	ABM 80	ABM 125	ABM 150	ABM 200	ABM 225	ABM 300	ABM 325	ABM 400	ABM 600
Drive (kW) from above	0.55	-	1.5	4	-	5.5	-	15	22
Drive (kW) from below	-	1.5	-	-	4	-	7.5	-	-
Weight (kg)	90	250	200	200	350	380	450	480	700
Throughput (kg/h)	10-100	20-200	20-200	100-1,000	100-1,000	500-4,000	500-4,000	1,000-8,000	1,500-10,000
Smallest batch size (g)	100	150	250	500	500	750	750	1,000	1,500

The facts speak for themselves

Design

Dust-tight
Product-contacted parts in stainless steel
FDA-approved

Options

ATEX design
Position of drive
Gas-thight design
Installation frame in mobile design
Flange geometry

Accessories

Rotor
Inlet and outlet
Screens

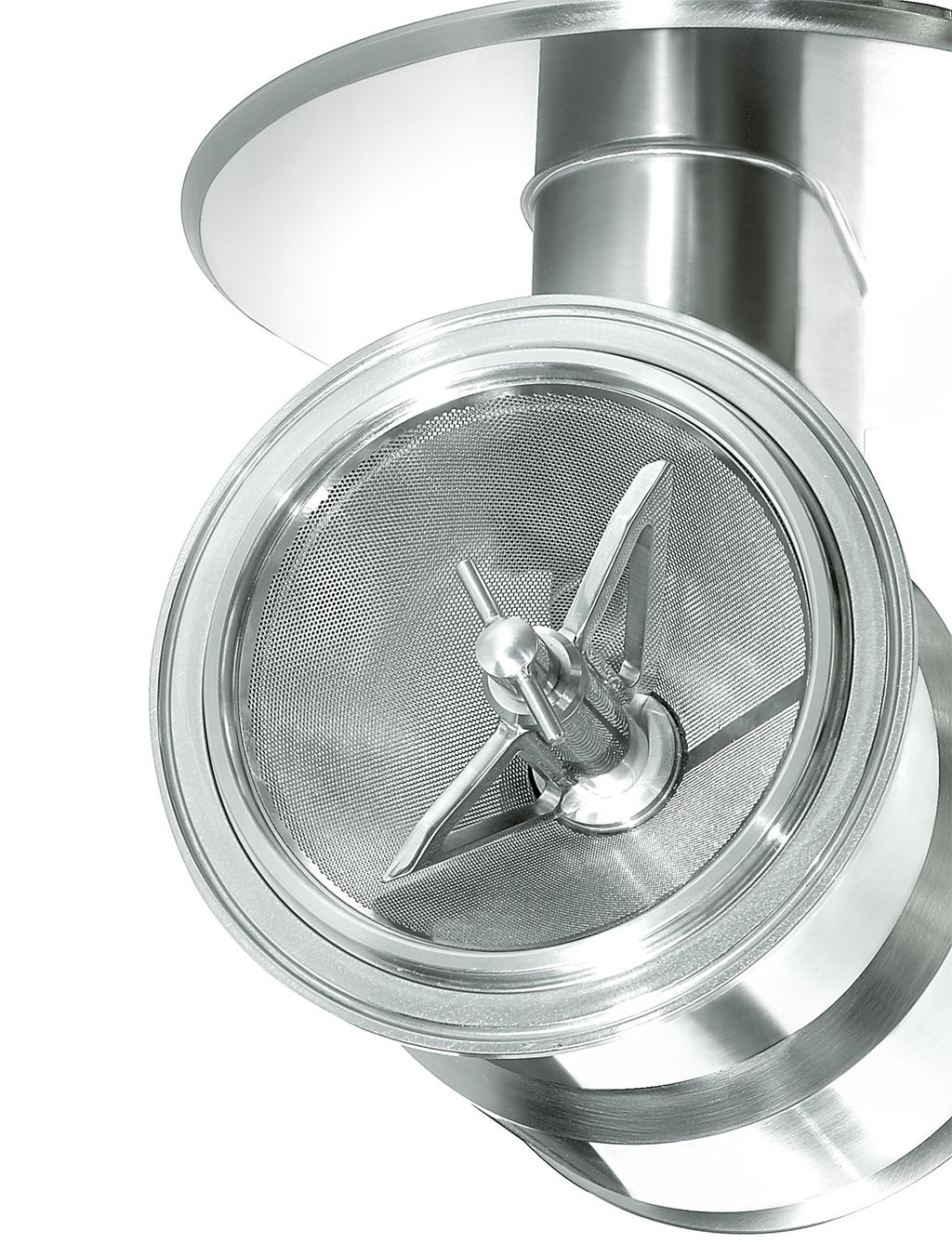

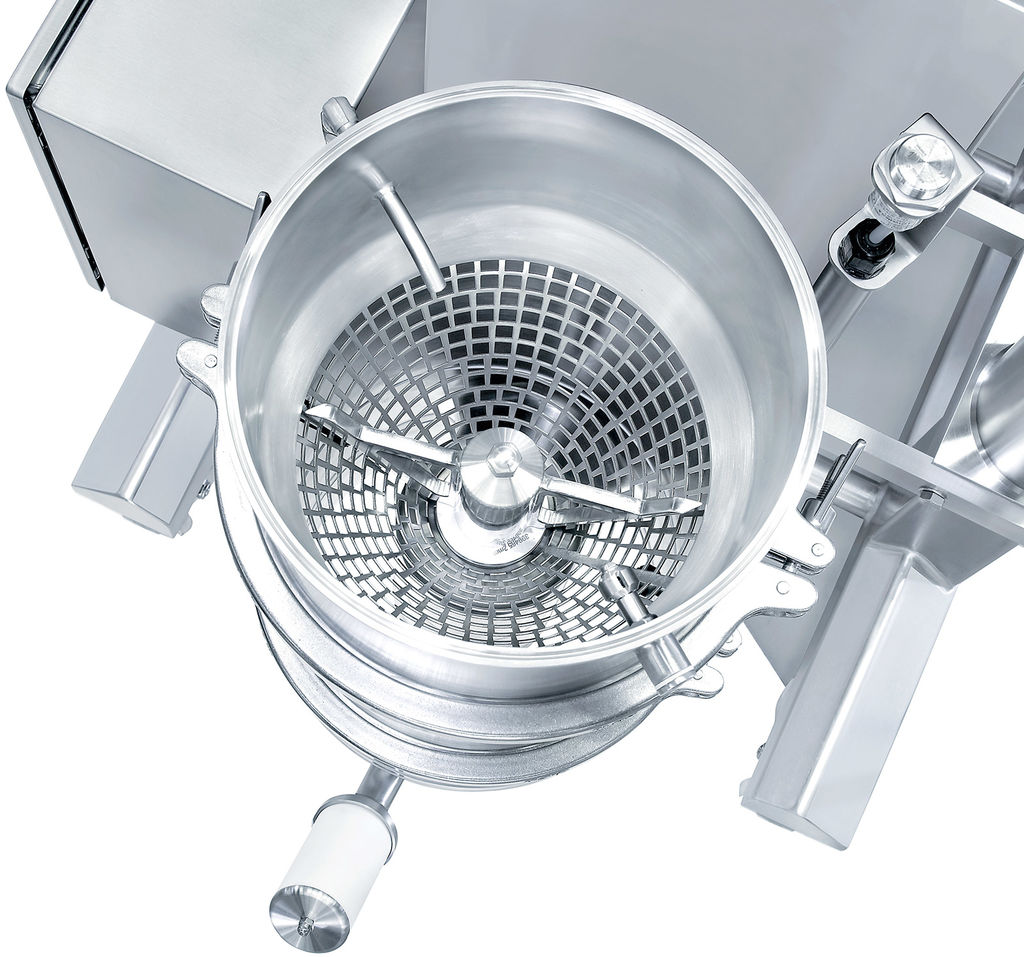

Your screen for optimum product quality

Choose a screen insert depending on the product properties for the perfext interaction between the grinding tool and the screen:

Round perforations
Rasp-like perforations
Slotted perforations
Square perforations

The amount of energy required is generally low and corresponds roughly to the force that one can apply by manual crushing. The product is crushed between the rotor and the screen. A defined top cut is achieved in this way. Typical screen mesh sizes range from 0.5 – 10 mm.

Thanks to the low energy input, the end product is low in fines and the crushing process is low in noise. The feed material must not necessarily be dosed. The machine does not need to be dedusted.
